HDPE PIPE SYSTEM
HIGH DENSITY POLYETHYLENE are non-toxic, flexible, highly resistant to UV radiation, lightweight, impact resistant and has a design life of 50 yea rs at a specif ied design temperature and pressure rating of the medium.Abrasi on resistance is better than a ny other rigid thermoplastics and considerably better tha n steel and other metal pipes, concrete and asbestos cement. Corrosion resista nee of PE pipes is excellent and extremely resistant to chemicals, solvents and radioactive waste water. HOPE pipe is strong, dura ble, flexible and lightweight. It is the best choice with its high quality, cost and performance in terms of concrete and steel pipes.
HIGH DENSITY POLYETHYLENE PIPES, popularly known as HDPE Pipes is a commonly used plastic pipes for va rieties of applications such as water mains, gas mains, sewer mains, slurry transfer lines, rural irrigation, f ire system supply lines, electrical and communications conduit, and storm water and drainage pipes.
HDPE pipe are produced f rom 100% high density polyethylene raw material, its high level of impermeability and strong molecular bond make it suitable for high pressure pipelines.
ADVANTAGE OF HDPE PIPES
There are lots of advantages in using HOPE pipes as compared to other pipes.
- Safety of potable water and long-term relia bility.
- Strong and durable.
- Resista nt to abrasion.
- Low thermal & electrical conductivity.
- Better flow character istics.
- Smooth internal and exter nal surface.
- No corrosion & abrasion, no scale formation.
- Excellent chemical resistance.
- Heat-fused joi nts: Lea k f,ree joints, no repairs needed.
- Long lasting life of minifinum 50 years.
- Zero Maintenance
HDPE PE 100 PIPE - ACCORDING TO EN 1519-1
Pipes for Soil and Waste discharge system
Series | S 12.5 | S 16 | ||
DN/OD (mm) | Wall thickness, e (mm) | Min. inside Diameter (mm) | Wall thickness, e (mm) | Min. inside Diameter (mm) |
110 | 4.20 | 101.60 | 3.40 | 103.20 |
125 | 4.80 | 115.40 | 3.90 | 117.20 |
160 | 6.20 | 147.60 | 4.90 | 150.20 |
200 | 7.70 | 184.60 | 6.20 | 187.60 |
250 | 9.60 | 230.80 | 7.70 | 234.60 |
315 | 12.10 | 290.80 | 9.70 | 295.60 |
HDPE PE 100 PIPE - ACCORDING TO BS EN 12666
Pipes for Non-pressure Underground Drainage and Sewerage
| SN | 4 | 8 | 16 | |||
| SDR | 26 | 21 | 17 | |||
| Series | S 12.5 | S 10 | S 8 | |||
| DN/OD (mm) | Wall thickness, e (mm) | Min. inside Diameter (mm) | Wall thickness, e (mm) | Min. inside Diameter (mm) | Wall thickness, e (mm) | Min. inside Diameter (mm) |
| 110 | 4.20 | 101.60 | 5.30 | 99.40 | 6.60 | 96.80 |
| 125 | 4.80 | 115.40 | 6.00 | 113.00 | 7.40 | 110.20 |
| 160 | 6.20 | 147.60 | 7.70 | 144.60 | 9.50 | 141.00 |
| 200 | 7.70 | 184.60 | 9.60 | 180.80 | 11.90 | 176.20 |
| 250 | 9.60 | 230.80 | 11.90 | 226.20 | 14.80 | 220.40 |
| 315 | 12.10 | 290.80 | 15.00 | 285.00 | 18.70 | 277.60 |
| 355 | 13.60 | 327.80 | 16.90 | 321.20 | 21.10 | 312.80 |
| 400 | 15.30 | 369.40 | 19.10 | 361.80 | 23.70 | 352.60 |

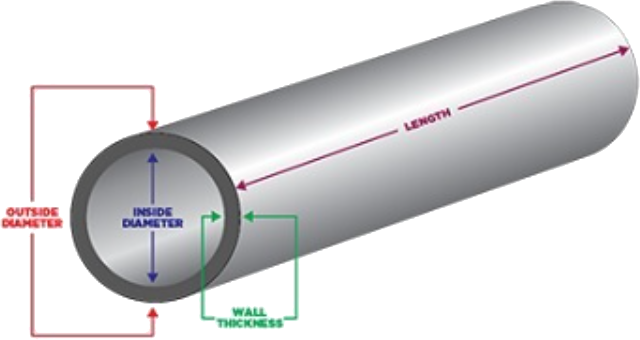

SDR : standard Dimension ratio : DN / e
DN : Nominal diameter or Outside diameter
e : Wall thickness
SN : Nominal stiffness
Colour of the pipe : Black
Length : 12 Mtr or as per customer requirments
HDPE PE100 PIPE - ACCORDING TO QCS & ISO 4427 EN 1519-1 BSEN 12666 ISO 4437
| Size | PN 6 SDR 26 | PN 8 SDR 21 | PN 10 SDR 17 | PN 16 SDR 11 | PN 20 SDR 9 | ||||||||||
| DN/OD (mm) | Wall thickness Diameter (mm) | Min. inside Diameter (mm) | Max Weight/Mtr | Wall thickness Diameter (mm) | Min. inside Diameter (mm) | Max Weight/Mtr | Wall thickness Diameter (mm) | Min. inside Diameter (mm) | Max Weight/Mtr | Wall thickness Diameter (mm) | Min. inside Diameter (mm) | Max Weight/Mtr | Wall thickness Diameter (mm) | Min. inside Diameter (mm) | Max Weight/Mtr |
| 23 | -- | -- | -- | -- | -- | -- | -- | -- | -- | 2 | 16 | 0.118 | 2.3 | 15.40 | 0.134 |
| 25 | -- | -- | -- | -- | -- | -- | -- | -- | -- | 2.3 | 20.4 | 0.173 | 3 | 19.00 | 0.202 |
| 32 | -- | -- | -- | -- | -- | -- | 2 | 28.00 | 0.198 | 3 | 26 | 0.282 | 3.6 | 24.80 | 0.331 |
| 40 | 1.8 | 36.40 | 0.229 | 2 | 36 | 0.251 | 2.4 | 35.20 | 0.299 | 3.7 | 32.6 | 0.434 | 4.5 | 31.00 | 0.514 |
| 50 | 2 | 46.00 | 0.317 | 2.4 | 45.2 | 0.378 | 3.00 | 44.00 | 0.458 | 4.6 | 40.8 | 0.573 | 5.60 | 38.80 | 0.798 |
| 63 | 2.50 | 58.00 | 0.50 | 3 | 57 | 0.586 | 3.80 | 55.40 | 0.73 | 5.8 | 51.4 | 1.08 | 7.10 | 48.80 | 1.27 |
| 75 | 2.90 | 69.20 | 0.68 | 3.6 | 67.8 | 0.836 | 4.50 | 66.00 | 1.03 | 6.8 | 61.4 | 1.48 | 8.40 | 58.20 | 1.78 |
| 90 | 3.50 | 83.00 | 0.99 | 4.3 | 81.4 | 1.2 | 5.40 | 79.20 | 1.47 | 8.20 | 73.6 | 2.14 | 10.10 | 69.80 | 2.57 |
| 110 | 4.20 | 101.60 | 1.45 | 5.3 | 99.4 | 1.79 | 6.60 | 96.80 | 2.19 | 10.00 | 90 | 3.18 | 12.30 | 85.40 | 3.82 |
| 125 | 4.80 | 115.40 | 1.86 | 6 | 113 | 2.29 | 7.40 | 110.20 | 2.79 | 11.40 | 102.2 | 4.12 | 14.00 | 97.00 | 4.92 |
| 140 | 5.40 | 129.20 | 2.35 | 6.7 | 126.6 | 2.86 | 8.30 | 123.40 | 3.50 | 12.70 | 114.6 | 5.13 | 15.70 | 108.60 | 6.18 |
| 160 | 6.20 | 147.60 | 3.08 | 7.70 | 144.6 | 3.75 | 9.50 | 141.00 | 4.57 | 14.60 | 130.8 | 6.74 | 17.90 | 124.20 | 8.04 |
| 180 | 6.90 | 166.20 | 3.83 | 8.60 | 162.8 | 4.71 | 10.70 | 158.60 | 5.77 | 16.40 | 147.2 | 8.51 | 20.10 | 139.80 | 10.20 |
| 200 | 7.70 | 184.60 | 4.74 | 9.6 | 180.8 | 5.84 | 11.90 | 176.20 | 7.12 | 18.20 | 163.6 | 10.50 | 22.40 | 155.20 | 12.60 |
| 225 | 8.60 | 207.80 | 5.96 | 10.8 | 203.4 | 7.37 | 13.40 | 198.20 | 9.03 | 20.50 | 184 | 13.30 | 25.20 | 174.60 | 15.90 |
| 250 | 9.60 | 230.80 | 7.38 | 11.9 | 226.2 | 9.02 | 14.80 | 220.40 | 11.10 | 22.70 | 204.6 | 16.30 | 27.90 | 194.20 | 19.60 |
| 280 | 10.70 | 258.60 | 9.20 | 13.4 | 253.2 | 11.4 | 18.60 | 242.80 | 13.90 | 25.40 | 229.2 | 20.50 | 31.30 | 217.40 | 24.60 |
| 315 | 12.10 | 290.80 | 11.70 | 15.00 | 285 | 14.30 | 18.70 | 277.60 | 17.60 | 28.60 | 257.8 | 25.90 | 35.20 | 244.60 | 31.10 |
| 355 | 13.60 | 327.80 | 14.80 | 16.90 | 231.2 | 18.20 | 21.10 | 312.80 | 22.40 | 32.20 | 290.6 | 32.90 | 39.70 | 275.60 | 39.50 |
| 400 | 15.30 | 369.40 | 18.80 | 19.10 | 361.8 | 23.10 | 23.70 | 352.60 | 28.30 | 36.30 | 327.4 | 41.70 | 44.70 | 310.60 | 50.10 |
| 450 | 17.20 | 415.60 | 28.70 | 21.50 | 407 | 29.30 | 26.70 | 396.60 | 35.80 | 40.90 | 368.2 | 52.80 | 50.30 | 349.40 | 63.40 |
| 500 | 19.10 | 461.80 | 29.20 | 23.90 | 452.2 | 36.10 | 29.70 | 440.60 | 44.20 | 45.40 | 409.2 | 65.20 | 55.80 | 388.40 | 78.10 |
| 560 | 21.40 | 517.20 | 36.80 | 26.70 | 506.6 | 45.20 | 33.20 | 493.60 | 55.40 | 50.80 | 458.4 | 81.70 | 62.50 | 435.00 | 98.00 |
| 630 | 24.10 | 581.80 | 46.4 | 30.00 | 570 | 57.00 | 37.40 | 555.20 | 70.20 | 57.20 | 515.6 | 103 | -- | -- | -- |
| 710 | 27.2 | 655.60 | 58 | 33.90 | 642.2 | 72.80 | 42.10 | 625.80 | 89.00 | 64.5 | 581 | 131 | -- | -- | -- |
| 800 | 30.6 | 738.80 | 74.7 | 38.10 | 723.8 | 92.00 | 74.40 | 705.20 | 113.00 | -- | -- | -- | -- | -- | -- |
SDR : Standard Dimension ration : DN / e
DN : Nominal diameter or Outside diameter
e : wall thickness
PN : Nominal pressure or working pressure in bar

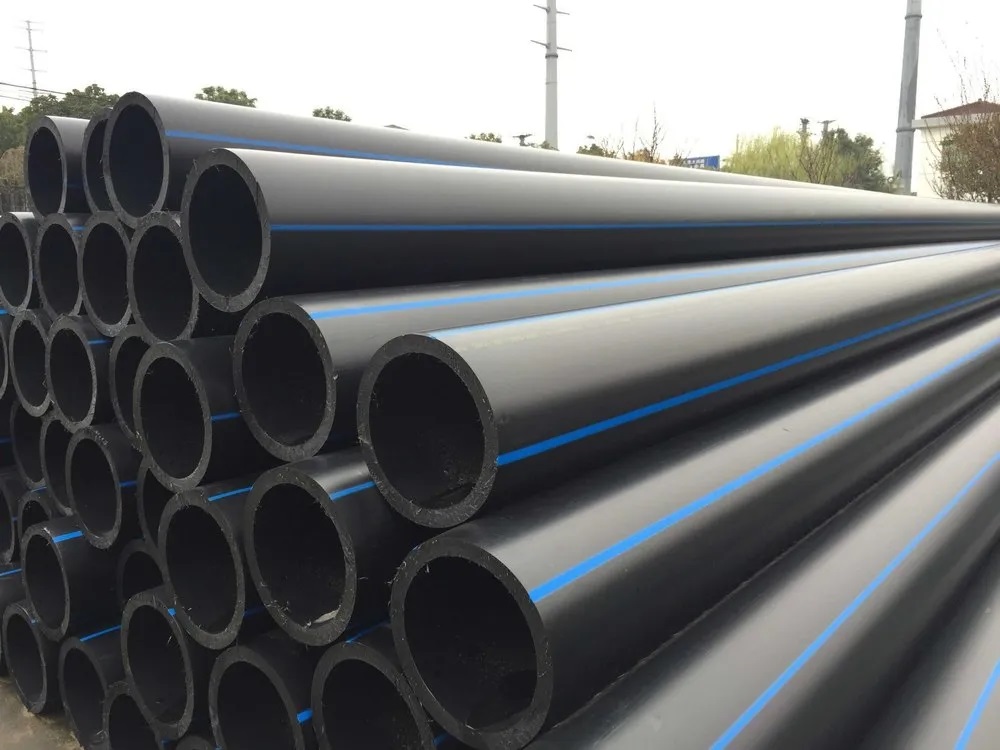

pipe : Black or Black with blue stripes
Lenght : 12 Mtr or as per customer requirments
