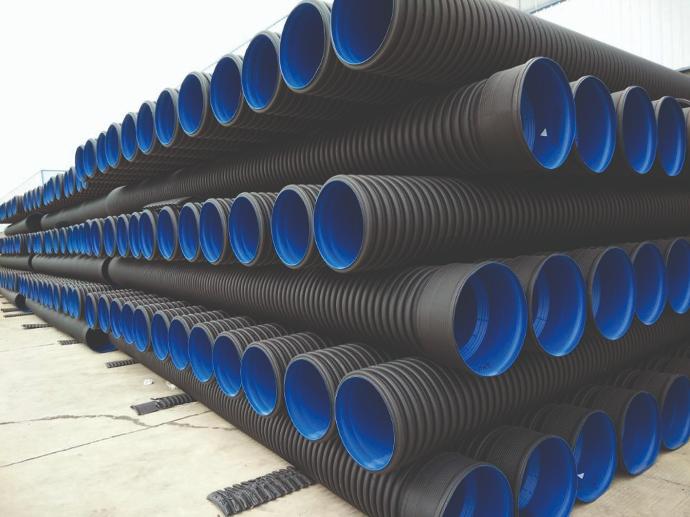

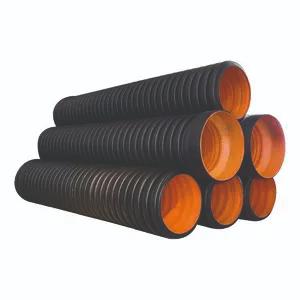

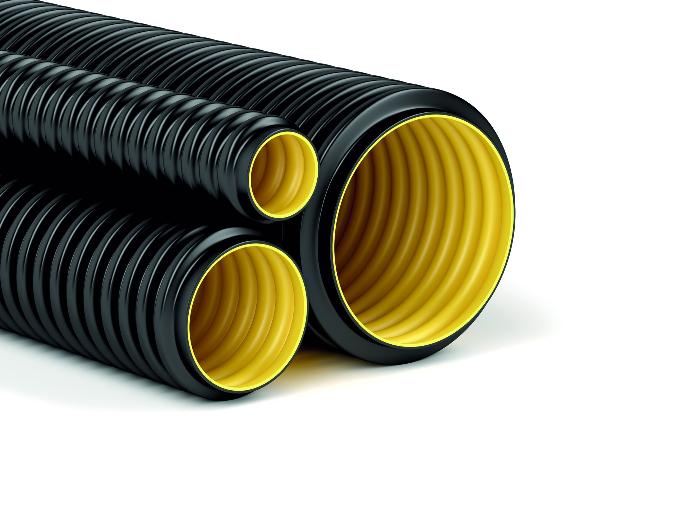

HDPE DOUBLE WALL CORRUGATED PIPES
High-density polyethylene (HDPE) is a versatile material and has some ideal characteristics for use in underground structures HDPE pipe is relatively lightweight allowing for easier and less costly transportation and installation costs. It is not brittle and therefore not susceptible to cracking during pipe handling and installation activities. Once formed into a pipe, HDPE has a smooth surface, which is resistant to abrasion, corrosion and chemical scouring. The smooth surface provides excellent pipeline flow characteristics. HDPE pipe is structurally strong and has the ability to support large loads, HDPE has the ability to relax under stress. This characteristic provides advantages for underground structures and also helps define limitations of use. As HDPE pipe is loaded, the pipe relaxes immediately, and over time, allows the load to be transferred to the adjacent soil. This characteristic allows the pipe to off-load points of local stress. Stress relaxation may result in slight pipe reformation over time to accommodate in place loading conditions. Such re-formations are believed to cause long-term structural stability New products plastic factory Nepro manufacturing HDPE Double Wall Corrugated pipes sizes from 110mm to 500mm as per EN 13476.HDPE Corrugated Double Wall Pipes are produced as SN 4 and SN 8 with smooth inner surface and profile/corrugation on outer surface. The product supplied is flexible double wall corrugated PE pipe manufactured in the continues co extrusion process
Double Wall Corrugated Pipes used in sewerage projects, industrial waste transportation, storm water drainage and drainage waters transportation project. Corrugated Pipe thanks to its flexible structure demonstrate compliance with the underground motion. Corrugated Pipes provide many years of trouble-free operation in infrastructure projects. Corrugated pipes ensures a longer life of the filling being laid solid ground.
Corrugated Pipes have superior corrosion resistance, provide ease transportation because of lightness. By combining the floor seals are completed quickly. Due to the sealing properties do not spread sewage into the groundwater. Corrugated Pipes are usually produced in 6 m lengths
ADVANTAGES OF HDPE DOUBLE WALL CORRUGATED PIPES:
Newpro Corrugated Drainage Pipe is high-strength due to high rib strength, corrosion resistance due to polyethylene, full sealing feature, 50 years life, corrosion-resistant organic compound, smooth inner surface, Light weight, easy to transport, economical and saved time to laying of pipes. With its more economical, stronger and more reliable structure. It would not be broken by being affected situations such as impact, traffic load, earthquake, landslides. Pipes made from Polyethylene material has high resistance to corrosion.
HDPE DOUBLE WALL CORRUGATED PIPES ARE MAINLY USED IN:
≫ Drainage projects
≫ Sewage pipeline projects
≫ Storm water discharge projects
≫ Sub-roadway waste water carriage projects
≫ Power cable protection projects
≫ Waste water discharge pipeline projects and storm water
≫ discharge projects as perforated pipe - slotted pipe
| HDPE Double Wall Corrugated Pipes According To BS EN 13476 | ||||
Size DN / OD (mm) | SN 4 | SN 8 | ||
| Inside diameter (mm) | Weight / Mtr (Kg) | Inside diameter (mm) | Weight / Mtr (Kg) | |
| 110 | 94.00 | 0.75 | 94.00 | 1.02 |
| 160 | 138.00 | 1.60 | 138.00 | 2.10 |
| 200 | 174.00 | 2.00 | 174.00 | 2.43 |
| 250 | 215.00 | 3.00 | 215.00 | 4.05 |
| 315 | 273.00 | 5.20 | 273.00 | 5.54 |
| 400 | 342.00 | 6.00 | 342.00 | 10.01 |
| 500 | 428.00 | 13.00 | 428.00 | 15.1 |
Length : 6 mtr or 50/100 mtr roll.
Colour of pipe : As per customer requirments.
