uPVC Piping System
Flange
Light Gray: EN1329
Orange: EN1401
Nominal size (mm)
| 90 | 160 |
| 110 | 200 |
| 110 | 250 |
| 125 | 315 |
| 160 |

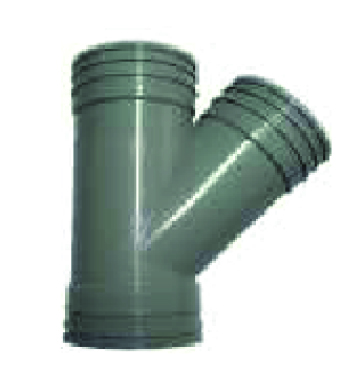

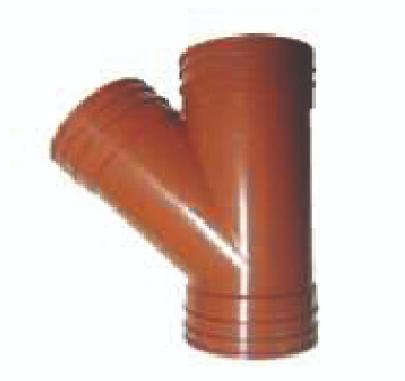

Y Tripple Socket 45°
Light Gray: EN1329
Orange: EN1401
Nominal size (mm)
| 75x50 | 125x90 |
| 90x63 | 125x110 |
| 110x63 | 160x110 |
| 110x75 | 160x125 |
| 110x90 |
Coupling
Light Gray: EN1329
Orange: EN1401
Nominal size (mm)
| 50 | 125 |
| 63 | 160 |
| 75 | 200 |
| 90 | 250 |
| 110 | 315 |

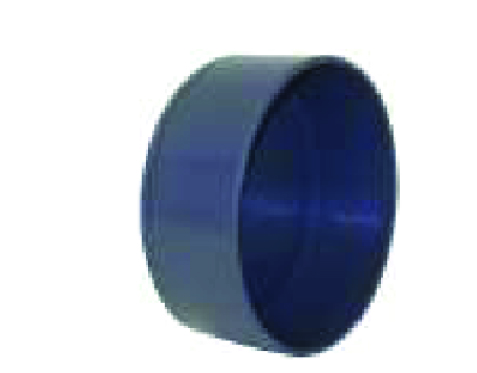

Cap
Light Gray: EN1329
Orange: EN1401
Nominal size (mm)
| 40 | 110 |
| 50 | 125 |
| 63 | 160 |
| 75 | 200 |
| 90 |
Tee 45°
Light Gray: EN1329
Orange: EN1401
Nominal size (mm
| 63 | 125 |
| 75 | 160 |
| 90 | 200 |
| 110 | 250 |
Reducing Tee 45°
Light Gray: EN1329
Orange: EN1401
Nominal size (mm)
| 90x63 | 125x110 |
| 110x63 | 160x110 |
| 110x90 | 200x110 |
Reducing Tee 90°
Light Gray: EN1329
Orange: EN1401
Nominal size (mm)
| 90x63 |
| 110x63 |
| 160x110 |
U Trap
Light Gray: EN1329
Orange: EN1401
Nominal size (mm)
| 63 | 110x110 |
| 90 | 125x110 |
| 110 | 125 |
Cross 45°
Light Gray: EN1329
Orange: EN1401
Nominal size (mm)
| 110x110x110x110 |
| 110x90x90x110 |
| 110x63x63x110 |
Elbow Double Socket 45°
Light Gray: EN1329
Orange: EN1401
Nominal size (mm)
| 63 | 160 |
| 75 | 200 |
| 90 | 250 |
| 110 | 315 |
Reducer
Light Gray: EN1329
Orange: EN1401
Nominal size (mm)
| 63x25 | 110x90 |
| 63x32 | 125x63 |
| 63x40 | 125x110 |
| 63x50 | 160x110 |
| 75x63 | 160x125 |
| 90x63 | 200x160 |
| 90x75 | 250x200 |
| 110x63 | 315x250 |
| 110x75 |
Light Gray: EN1329
Orange: EN1401
Nominal size (mm)
| 20 | 90 |
| 25 | 110 |
| 32 | 125 |
| 40 | 160 |
| 50 | 200 |
| 63 | 250 |
| 75 | 315 |

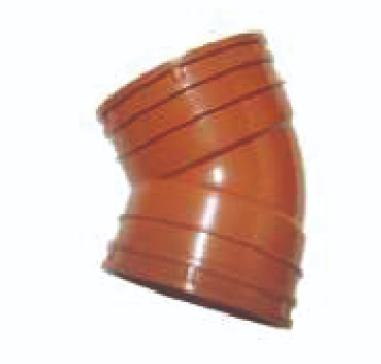

Elbow 45°
Light Gray: EN1329
Orange: EN1401
Nominal size (mm)
| 25 | 110 |
| 32 | 125 |
| 45 | 160 |
| 50 | 200 |
| 63 | 250 |
| 75 | 315 |
| 90 | 400 |

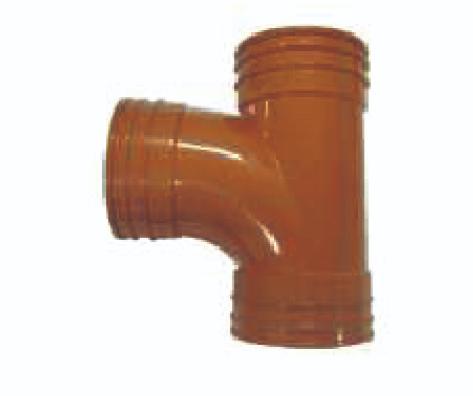

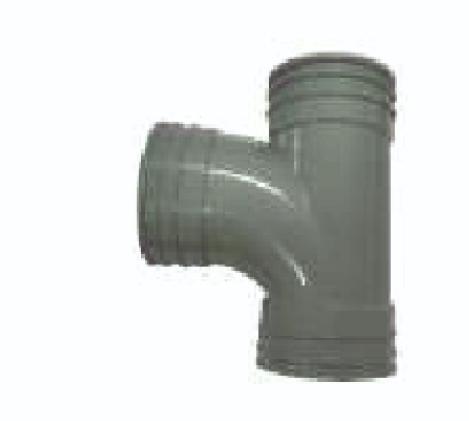

Tee 90°
Light Gray: EN1329
Orange: EN1401
Nominal size (mm)
| 20 | 90 |
| 25 | 110 |
| 32 | 125 |
| 40 | 160 |
| 50 | 200 |
| 63 | 250 |
| 75 | 315 |
Above Ground Drainage Waste BS 5255 Fittings

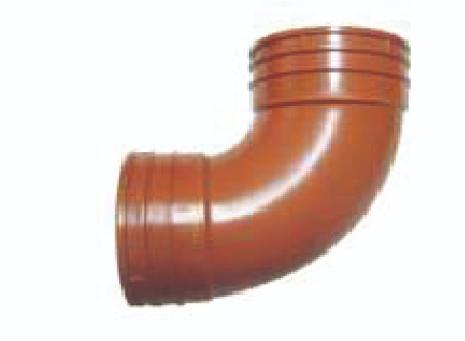

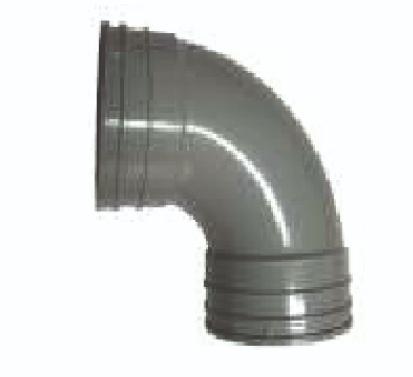

Elbow 90°
Size (inch)
| 1 1⁄2 " | 2" |

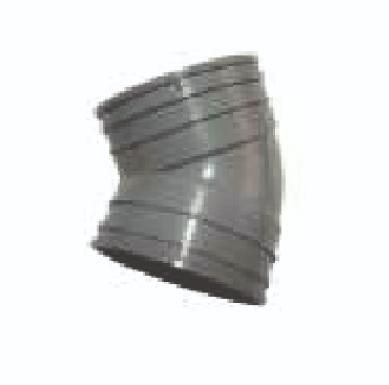

Elbow 45°
Size (inch)
| 1 1⁄2 " | 2" |
Branch 90°
Size (inch)
| 1 1⁄2 " | 2" |
Branch 45°
Size (inch)
| 1 1⁄2 " | 2" |
Socket
Size (inch)
| 1 1⁄2 " | 2" |
Above Ground Drainage Soil BS 4514 Fittings
Elbow 90°
Size (inch)
| 3" | 4" | 6" |
Elbow 45°
Size (inch)
| 3" | 4" | 6" |
Branch 90°
Size (inch)
| 3" | 4" | 6" |
Branch 45°
Size (inch)
| 3" | 4" | 6" |
Socket
Size (inch)
| 3" | 4" | 6" |

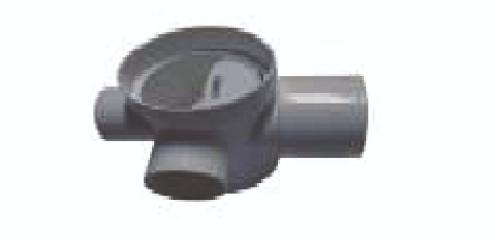

Trapped Floor Gully
Size (inch)
| 4" |

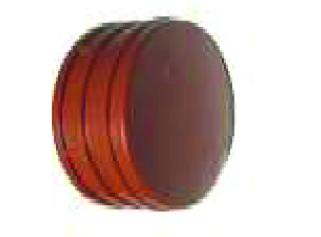

End Cap
Size (inch)
| 4" | 6" |
Underground Drainage System BS 4660 Fittings
Elbow 90°
Size (inch)
| 4" | 6" |
Branch 90°
Size (inch)
| 4" | 6" |
Branch 45°
Size (inch)
| 4" | 6" |
Elbow 45°
Size (inch)
| 4" | 6" |
P Trapped
Gully
Size (inch)
| 4" |
End Cap
Size (inch)
| 4" |
